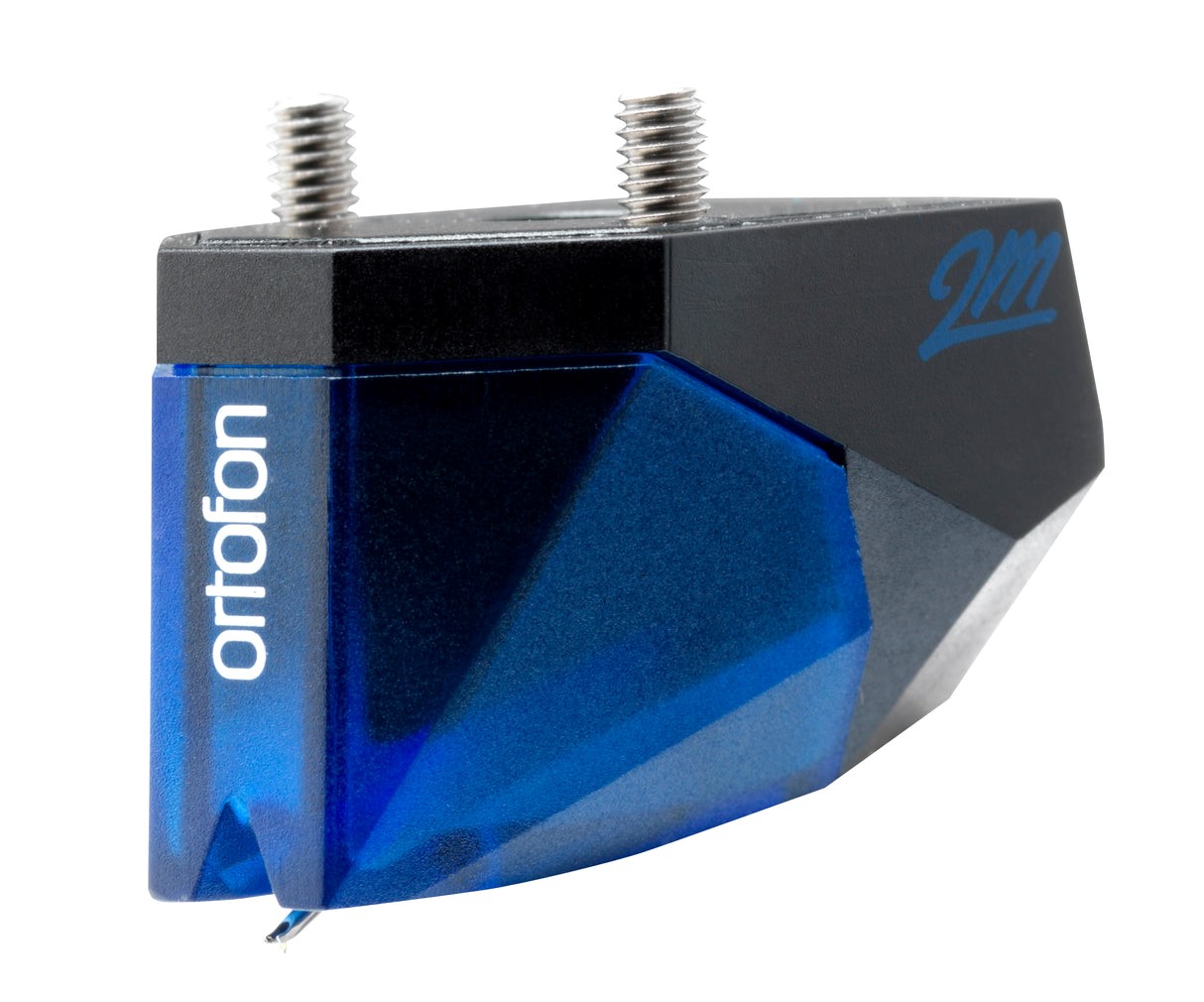

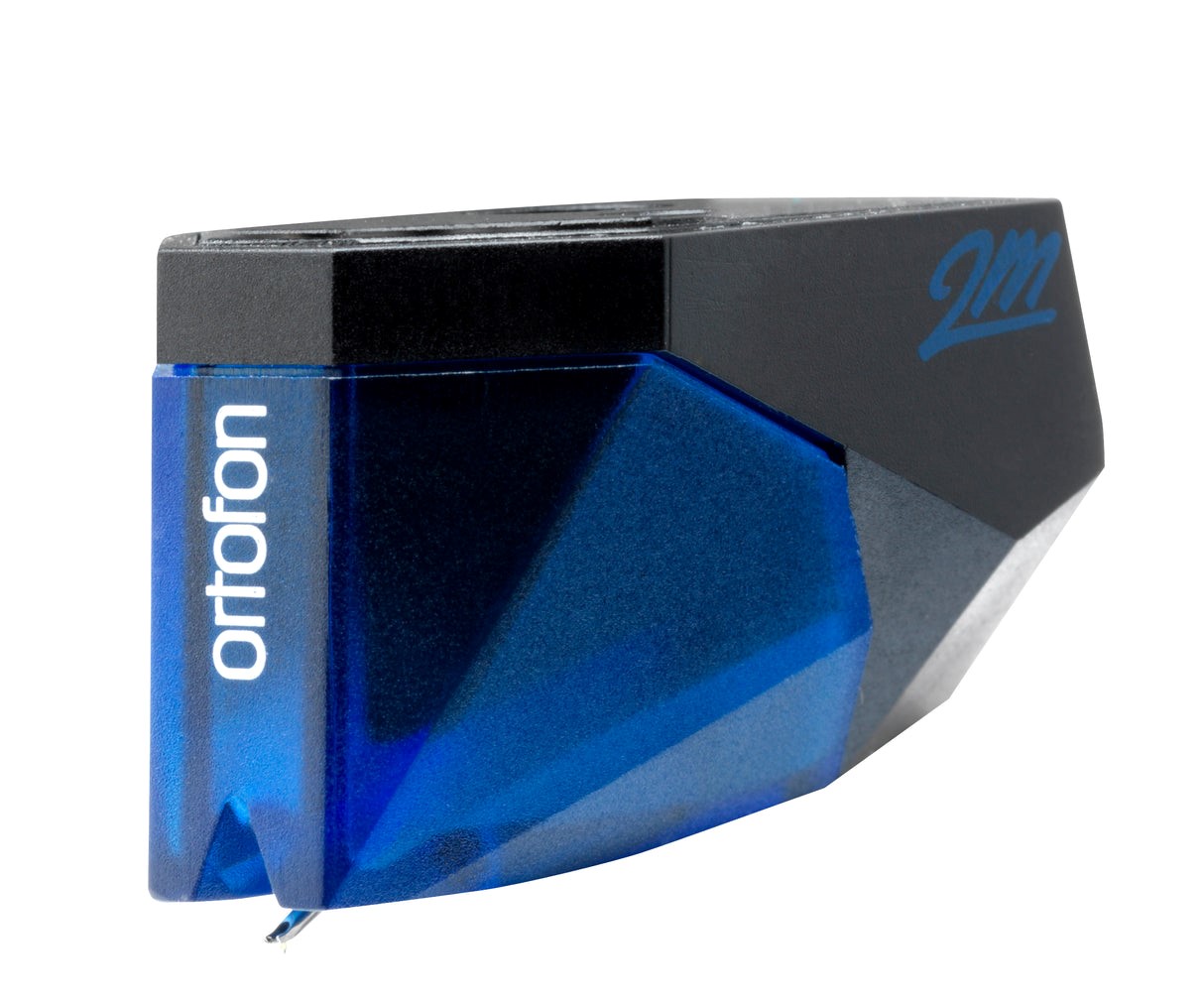

ORTOFON 2M-BLUE CARTRIDGE

SKU: 1940877001
Availability:

Out of stock


Specifications
Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5cm/sec
5.5 mV
Channel seperation at 1 kHz
25 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz – 20 kHz
20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force
80 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.3 kOhm
Cartridge colour
Black/Blue
Cartridge weight
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
700 mH
Stylus colour
Blue
Recommended load capacitance
150-300 pF

199,00

Out of stock

The goal for any cartridge should be to reproduce the sound as close to the artist’s vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Nude Elliptical stylus

Stylus
The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Universal fit

Compatibility
Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today’s most popular turntables, the 2M Series offers four distinct product versions:

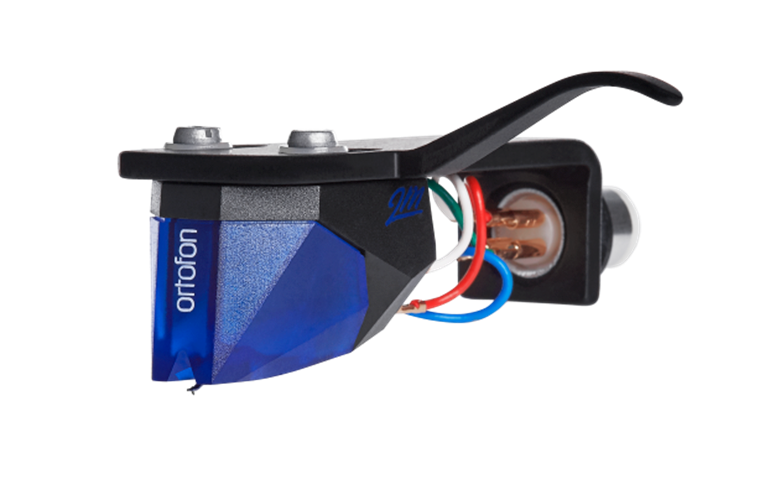

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
